Harley Davidson Street Bob (FXBBS) - 5-Gallon Tank Swap

A 3.5-gallon tank looks cool, but it will only get you so far, literally.

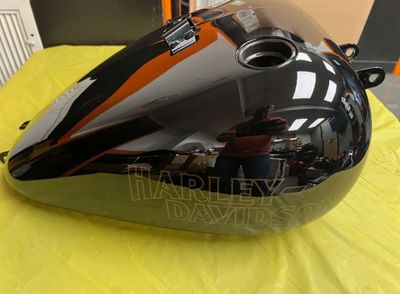

I'd been searching for a 5-gallon Softail tank for a while, but all I could find were dented tanks or ones with ridiculous asking prices. Eventually, a Low Rider S tank showed up on eBay for a decent price, so I decided to pull the trigger.

The tank swap itself was pretty easy. The FXLRS tank is a direct bolt-on replacement for the Street Bob, but I did need a different fuel pump assembly.

You could reuse the stock FXBBS fuel pump assembly, but you wouldn't be able to use all five gallons of fuel, which kind of defeats the purpose of doing the swap in the first place.

The Low Rider S (FXLRS) fuel pump has an additional pickup that pulls fuel from the other side of the larger tank. It also uses a different fuel-level sender, which is needed for the bike to display the correct fuel level and range.

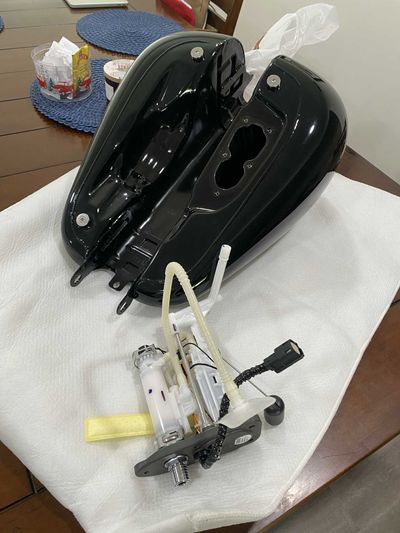

Harley Davidson FXLRS 5 Gallon Tank Fuel Pump.

Parts List

FXLRS Tank
FXLRS Fuel Pump Module — 61200042
Tank Vent Plug x2 — 10500098
Tank Front Right Trim — 61400485
Tank Front Left Trim — 61400486
Tank Rear Right Trim — 61400487
Tank Rear Left Trim — 61400488
Console Trim (should include gasket) — 70901156A
Console Screw — 10200141
Console Washer — 10300128
Console Retention Nut — 60900064
Console Screw — 10201251
Console Nut Clip — 8144

Harley Davidson FXLRS 5 Gallon Tank Installed.

The finished swap looks almost factory, which is exactly what I wanted. The larger tank fits the Softail frame really well and gives the Street Bob considerably more range without looking oversized.

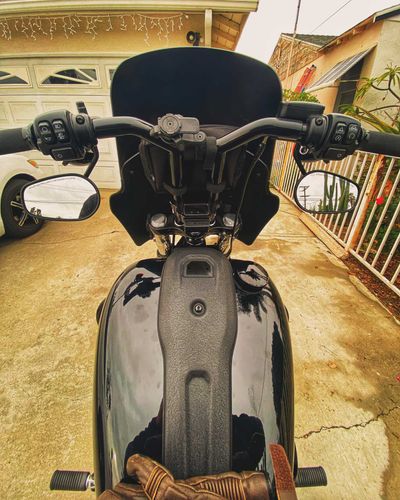

Harley Davidson Street Bob (FXBBS) with FXLRS 5 Gallon Tank Installed. AKA the Street Rider.

And there it is the Street Rider.
